Article description

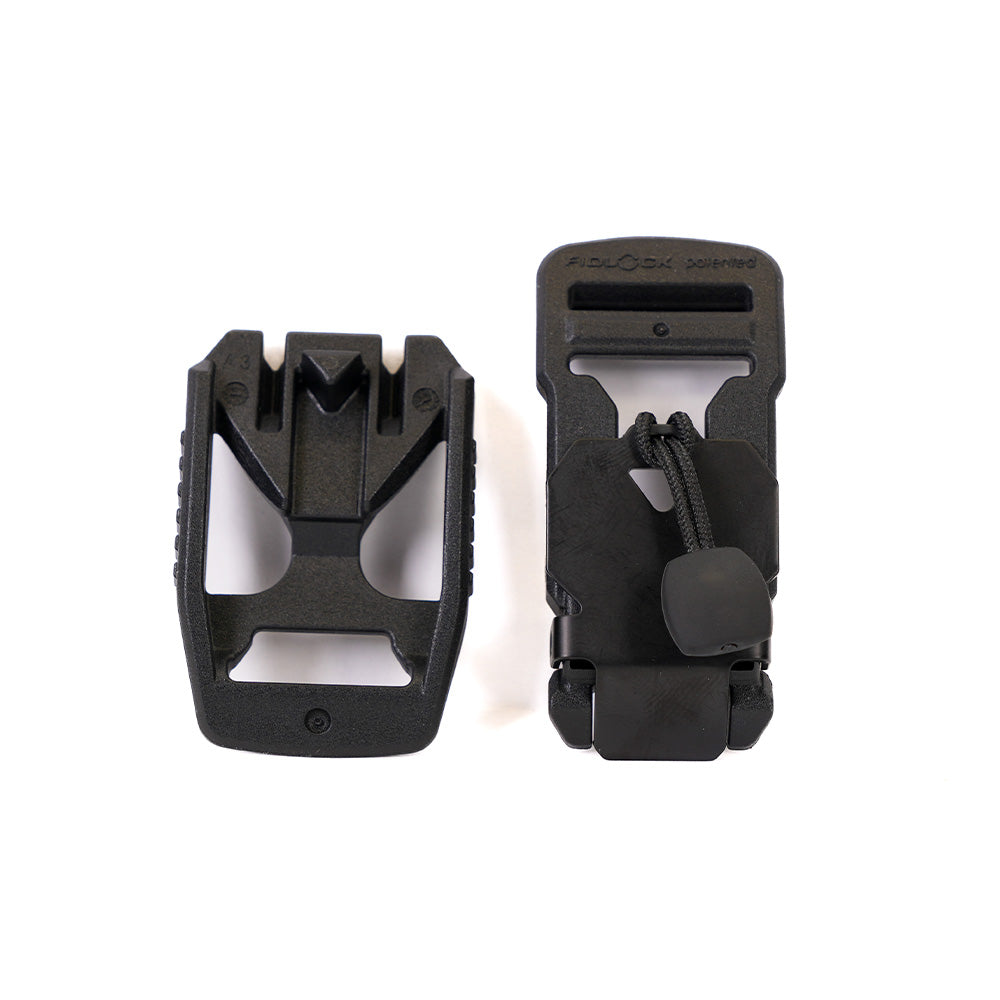

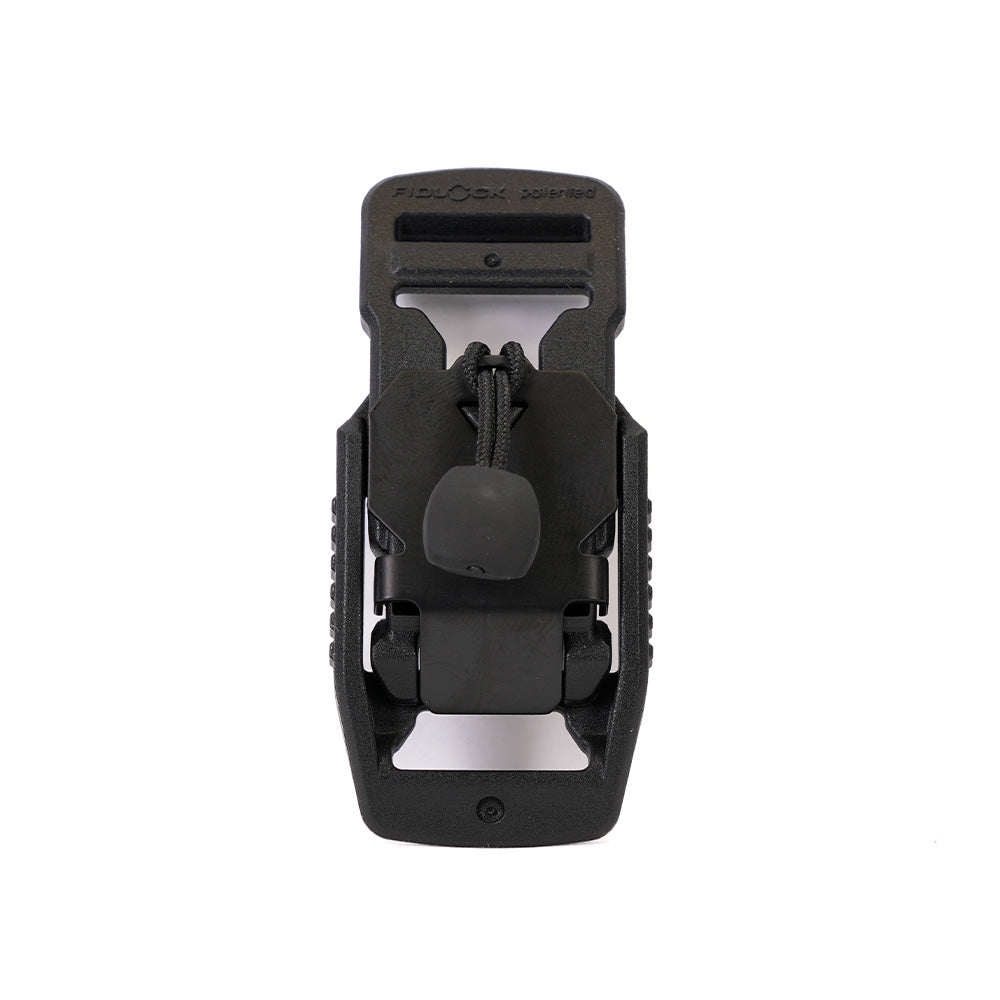

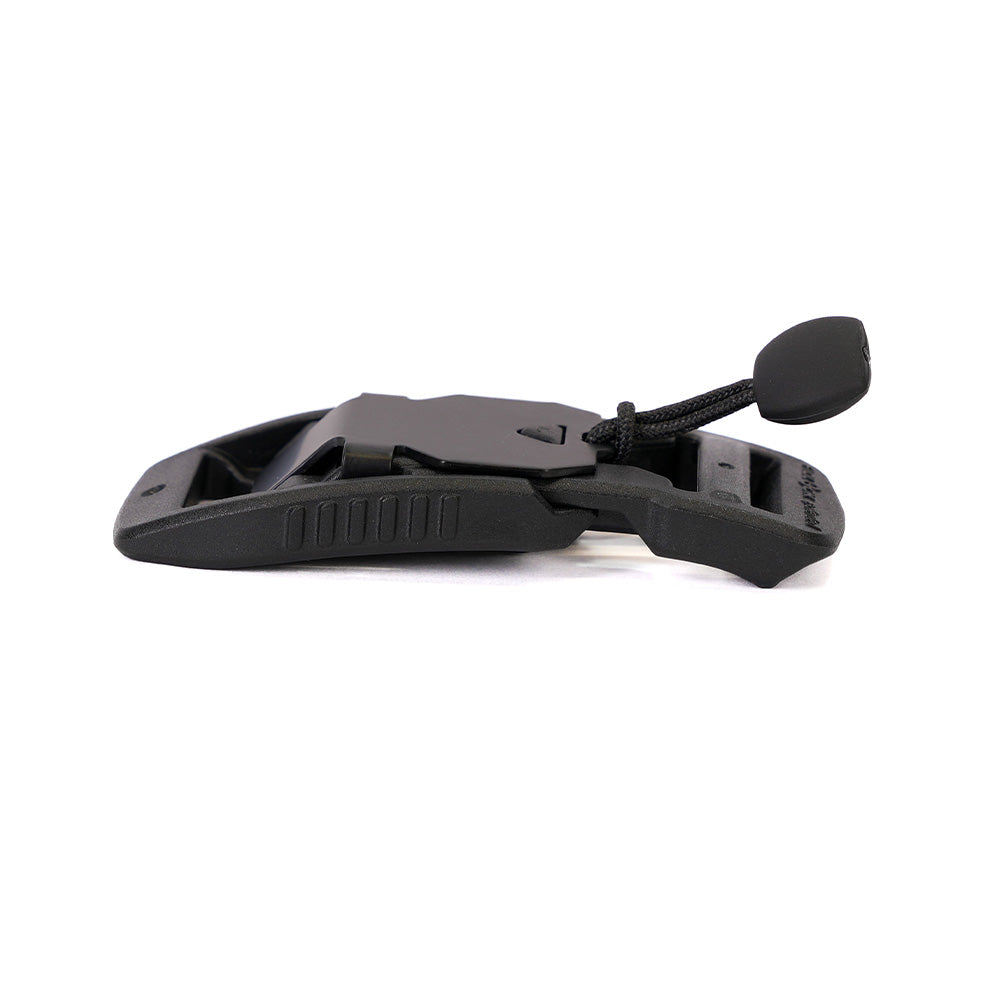

This slim version of the V-BUCKLE was specially developed for 20 mm wide webbing and is also distinguished by the black stainless steel cap. Nevertheless, the female and male parts of the equally self-locking 20 slim black flap can be freely combined with the components of the V-BUCKLE product family.
Technical data
|
|
15 mm |
20 mm |
25 mm |
|
Opening mechanism |
Lifting |
Lifting |
Lifting |
|
Webbing width |
15 mm |
20 mm |
25 mm |
|
Weight |
8 g |
23 g |
25 g |
|
Dimensions (LxWxH) |
38.0 x 21.0 x 9.3 mm |
74.0 x 34.2 x 13.5 mm |
72.0 x 34.0 x 14.0 mm |
|
Material |
PA66GF30, stainless steel |
PA66GF30, stainless steel |
PA66GF30, stainless steel |
|
Static breaking load N |
333 N |
686 N |
686 N |
|
Static breaking load kg |
34 kg |
70 kg |
70 kg |
Safety instructions & further information
Not suitable for safety-relevant applications.
Male and female parts of the V-BUCKLE product family can be freely combined. This does not apply to size S V-BUCKLES, which are identified by the additional "S" in the product name.
Field of application
The V-BUCKLE product family can be used in many different ways. Possible areas of application include shoes, clothing, bags, sports and outdoor equipment and carrying systems.
Assembly
The V-BUCKLE is simply attached to webbing straps. Depending on the combination of ladderlock and single bar components, the straps can be adjusted on either, one or both sides.
